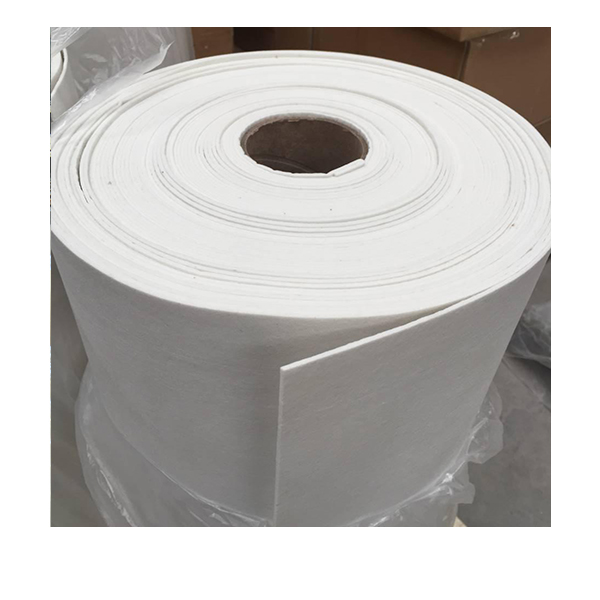

Ceramic Fiber Paper

ceramic fiber paper

Low thermal conductivity

Excellent flexibility

Free of asbestos

Excellent strength

High Tensile strength

High compression resistance

Technical Index

Descriptions		SS-COM	SS-STD	SS-HP	SS-HA	SS-ZA
Classification temperature ()		1260	1260	1300	1400	1430
Operating temperature ()		1000	1000	1150	1260	1350
Color		White	White	White	White	White
Densitykg/m³)		260	260	260	260	260
Densitykg/m³)		320	320	320	320	320
Permanent line constringency(%) ( heat preservation 24 hours, Density 320/ m³)		-4	-3	-3	-3	-3
		1000	1000	1100	1200	1350
Thermal transmit coefficient ( w/ m.k) ( Density 285 kgs/ m³)		0.085(400)	0.085(400)	0.085(400)	0.085(400)	0.085(400)
		0.132(800)		0.132(800)	0.132(800)	0.132(800)
		0.1801000	0.132(800)	0.180(1000)	0.180(1000)	0.180(1000)
Tensile Strength ( MPa)		0.5	0.5	0.5	0.5	0.5
The chemistry constitute (%)	AL₂O₃	44,45	46	4749	5255	3940
	AL₂O₃+SiO₂	96	97	99	99	–
	AL₂O₃+SiO₂+ZrO₂	–	–	–	–	99
	ZrO₂	–	–	–	–	15-17
	Fe₂O₃	<1.2	<1.0	0.2	0.2	0.2
	Na₂o+K₂O	≤0.5	≤0.5	0.2	0.2	0.2
Dimensions (mm)		600×400×1050900×600×2050 Other specifications according to the customer request.
